Power remote cabins, medium-sized off-grid homes, or backup setups with the ECO-WORTHY 10kW Off-Grid Solar System Kit. Engineered for comprehensive energy independence, this complete setup features a 10,000W split-phase inverter/charger, high-efficiency bifacial N-type monocrystalline solar panels, and server-rack LiFePO₄ energy storage.
Key System Components

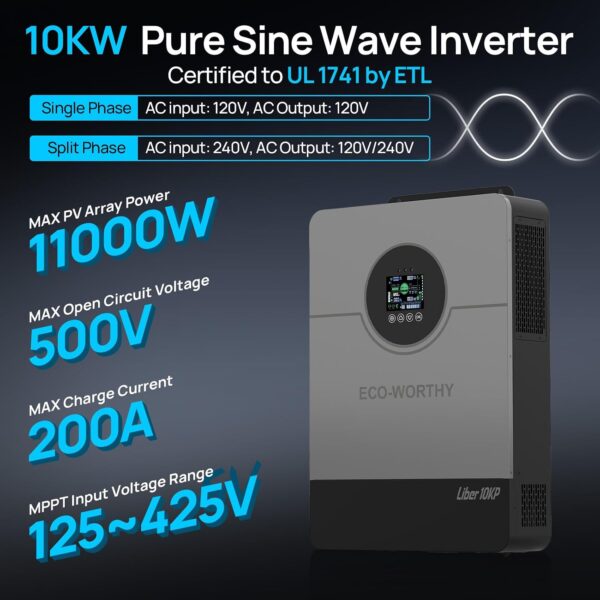

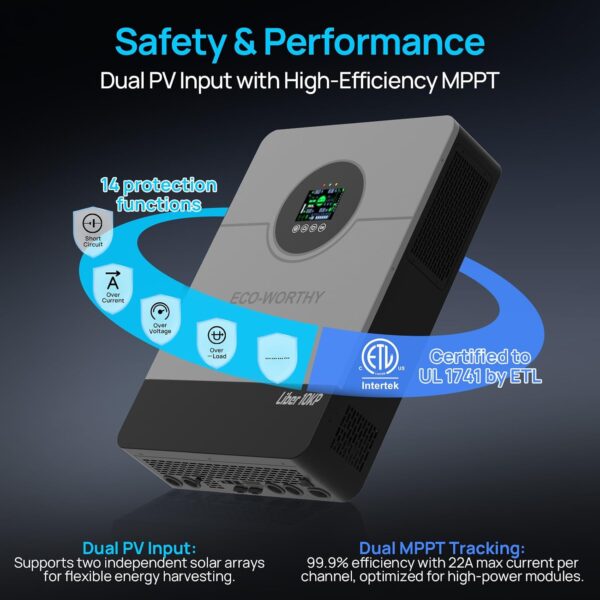

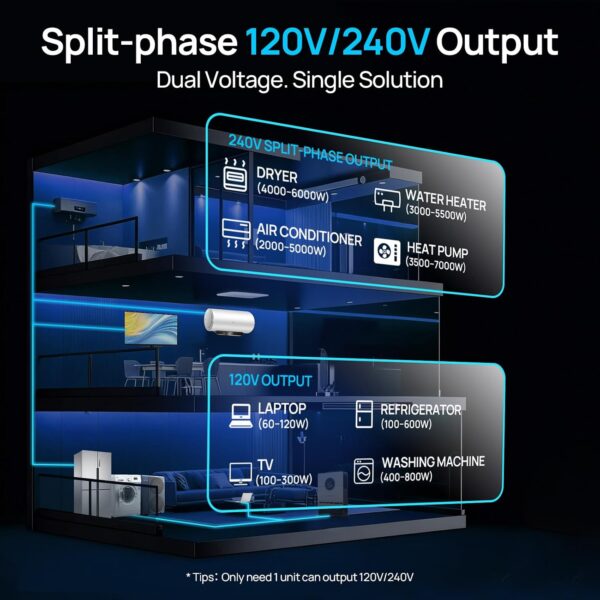

- 10kW Split-Phase Inverter/Charger: Delivers 48V DC pure sine wave power supporting 120V and 120V/240V appliances with up to 10,000W continuous output (20,000W peak). Equipped with dual MPPT charge controllers, time-slot energy management, up to 200A battery charging, and built-in Wi-Fi monitoring. Supports parallel connection of up to 6 units.

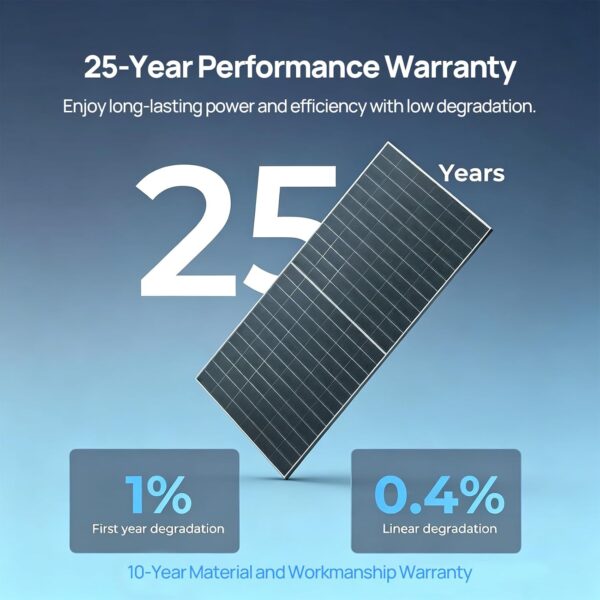

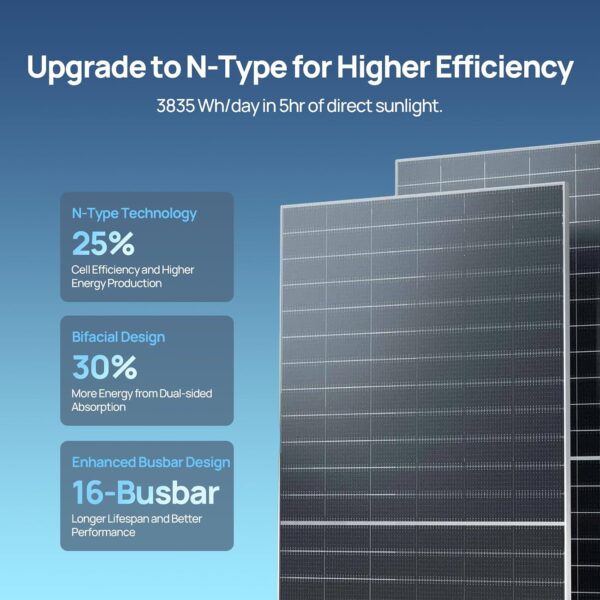

- High-Efficiency 590W Solar Panels: Features N-type monocrystalline half-cut cells with 23.23% module efficiency and dual-glass bifacial architecture for up to 25% added rear-side yield. Built to withstand demanding weather conditions with TÜV and CSA certifications.

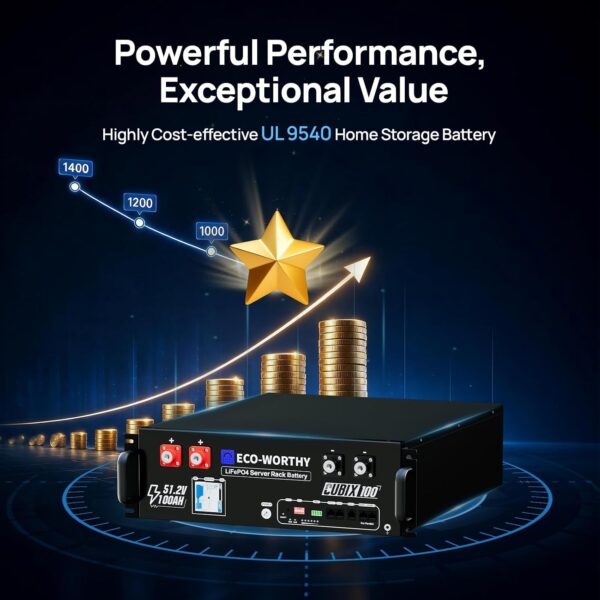

- Server Rack LiFePO₄ Battery Storage: Standard 3U rack-mount form factor equipped with an integrated 100A BMS, a 125A circuit breaker, and robust all-metal casing. Intertek-certified to UL 1973, UL 9540A, and CEC safety standards. Features CAN/RS485 inverter communication alongside Bluetooth and Wi-Fi cell-level monitoring.
What’s Included
- 5 × 590W Bifacial Monocrystalline Solar Panels
- 1 × 10kW 48V Split-Phase Inverter/Charger
- 3 × 48V 100Ah Server Rack LiFePO₄ Batteries (15.36 kWh total)
- Connecting System Cables
| Brand | ECO-WORTHY |
| Model Number | L02M590-SRNK10KU3U3-5 |
| Product Type | Off-Grid Solar Power Kit |
| Inverter Continuous Output | 10000W |
| Inverter Peak Output | 20000W |
| Output Voltage | 120V / 240V AC Split-Phase |
| Solar Panel Wattage | 590W per panel (2950W total PV) |
| Solar Panel Dimensions (L x W x H) | 89.7″L x 44.6″W x 1.4″H |
| Solar Cell Type | N-Type Monocrystalline Bifacial Half-Cut |
| Solar Panel Efficiency | 23.23% |
| Battery Type | LiFePO₄ |
| Total Battery Capacity | 15.36 kWh (3x 48V 100Ah) |
| Battery Form Factor | 3U Server Rack |
| Communication Interfaces | CAN, RS485, Wi-Fi, Bluetooth |
| Safety Certifications | UL 1973, UL 9540A, CEC, TÜV, CSA |
| Manufacturer Warranty | 1 Year |
