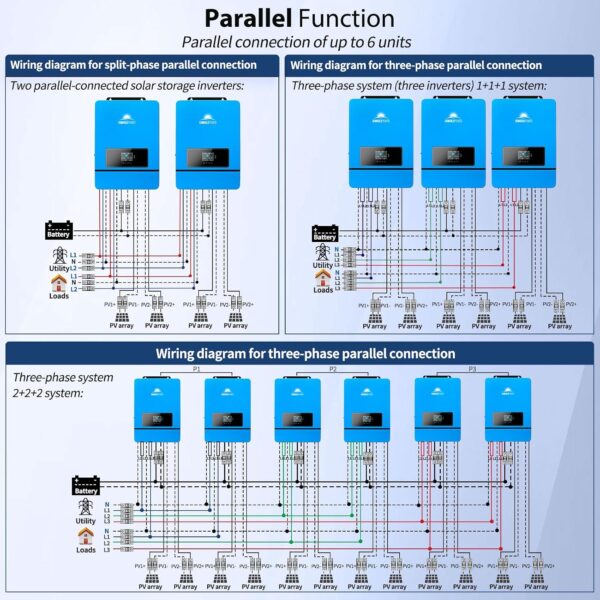

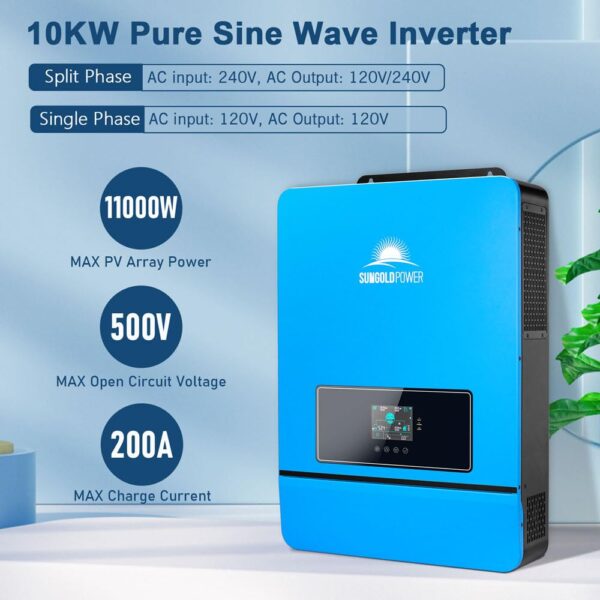

The SUNGOLDPOWER Split Phase Pure Sine Wave Solar Inverter Charger delivers reliable off-grid and hybrid power management. Designed for 48V battery systems, this all-in-one unit integrates dual MPPT solar charge controllers supporting up to 500VDC open-circuit voltage and a maximum battery charging current of 200A. It provides configurable 120V single-phase or 120V/240V split-phase AC output and supports parallel operation of up to 6 units.

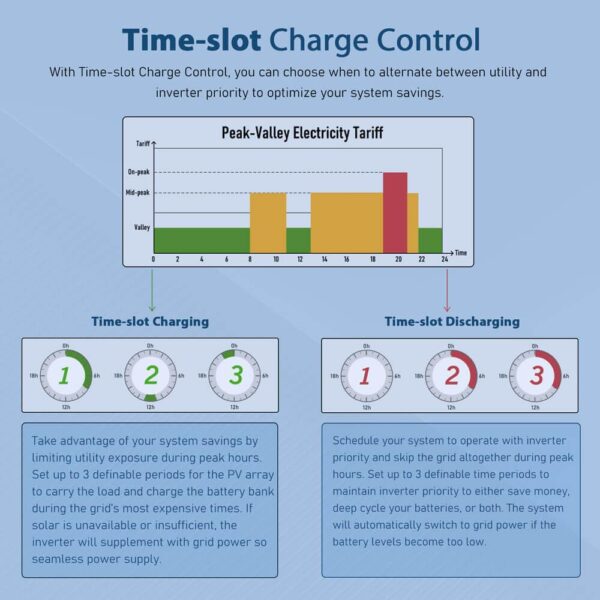

Equipped with intelligent energy management features, it includes a time-slot charging and discharging function to optimize power consumption based on peak and off-peak utility rates. Four charging modes (Hybrid, Utility Priority, Solar Priority, and Solar Only) alongside four configurable output modes provide versatile power routing tailored to specific energy requirements.
Broad battery compatibility supports 48V AGM, Sealed, Gel, Flooded, and Lithium battery chemistries, including a dedicated User Mode and battery-free operation. Advanced lithium activation technology wakes dormant batteries via mains or solar input. Built-in CAN, USB, and RS485 communication protocols ensure seamless data exchange and monitoring.
| Power Source | Solar and Battery Powered |
| System Voltage | 48V DC |
| Output Waveform | Pure Sine Wave |
| AC Output Voltage | 120V / 240V (Configurable) |
| Maximum Battery Charging Current | 200A |
| Max Open Circuit Voltage (VOC) | 500V DC |
| MPPT Solar Controllers | 2 Built-in |
| Frequency | 60 Hz |
| Display Type | LCD |
| Parallel Capability | Up to 6 units |
| Certifications | UL1741 |
| Compatible Battery Types | AGM, Sealed, Gel, Flooded, Lithium, User Defined |
| Communication Interfaces | CAN, USB, RS485 |
| Dimensions | 25 x 17.5 x 5.3 in |
| Weight | 53.5 lb |
